M5Z Compressor-free Dry Milling Machine
The M5Z combines 5-axis dry milling with a compact, compressor-free design for clinics and dental laboratories that want a simpler CAD/CAM workflow.
Designed for zirconia, PMMA, PEEK and wax, the M5Z features a 12-tool automatic changer, high-speed spindle and enclosed dust-protection structure for efficient everyday dental production.
Compressor free
No external air compressor required for simpler installation.
Dry milling

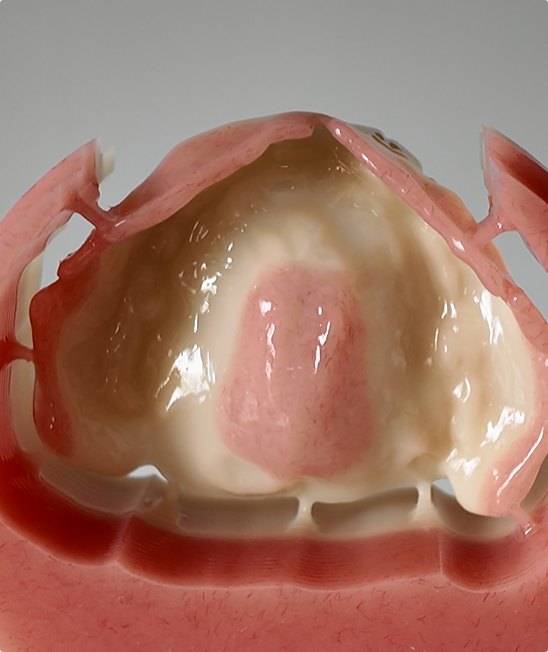

Efficient dry milling for zirconia, PMMA, PEEK, and wax.
5-axis
Flexible 5-axis milling for complex dental restorations.
Real-time monitoring
Built-in camera for real-time milling process monitoring.
Plug-and-play
Easy setup with fewer external equipment requirements.
Dust free system
Upgraded protection against fine milling dust.
JINY Dental

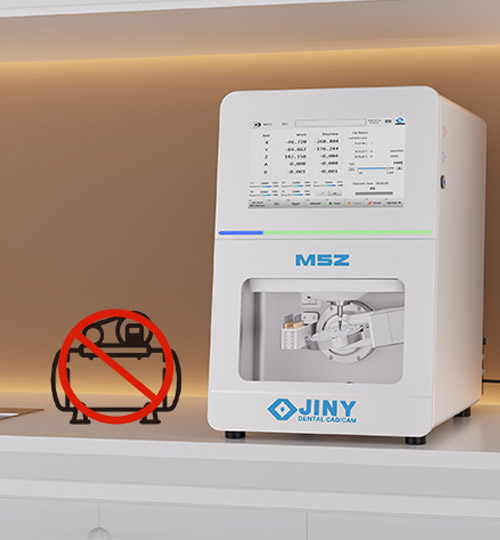

Compact Dry Milling Without an External Air Compressor
One of the key advantages of the M5Z is its compressor-free design.By eliminating the need for an external air compressor, the machine can simplify installation, save space and reduce additional equipment around the milling area.
This makes the M5Z particularly suitable for users looking for a compact dry milling machine for a clinic, smaller dental laboratory or space-conscious CAD/CAM workflow.
Advanced closed dust-proof structure, anti-dust and ultra-durable

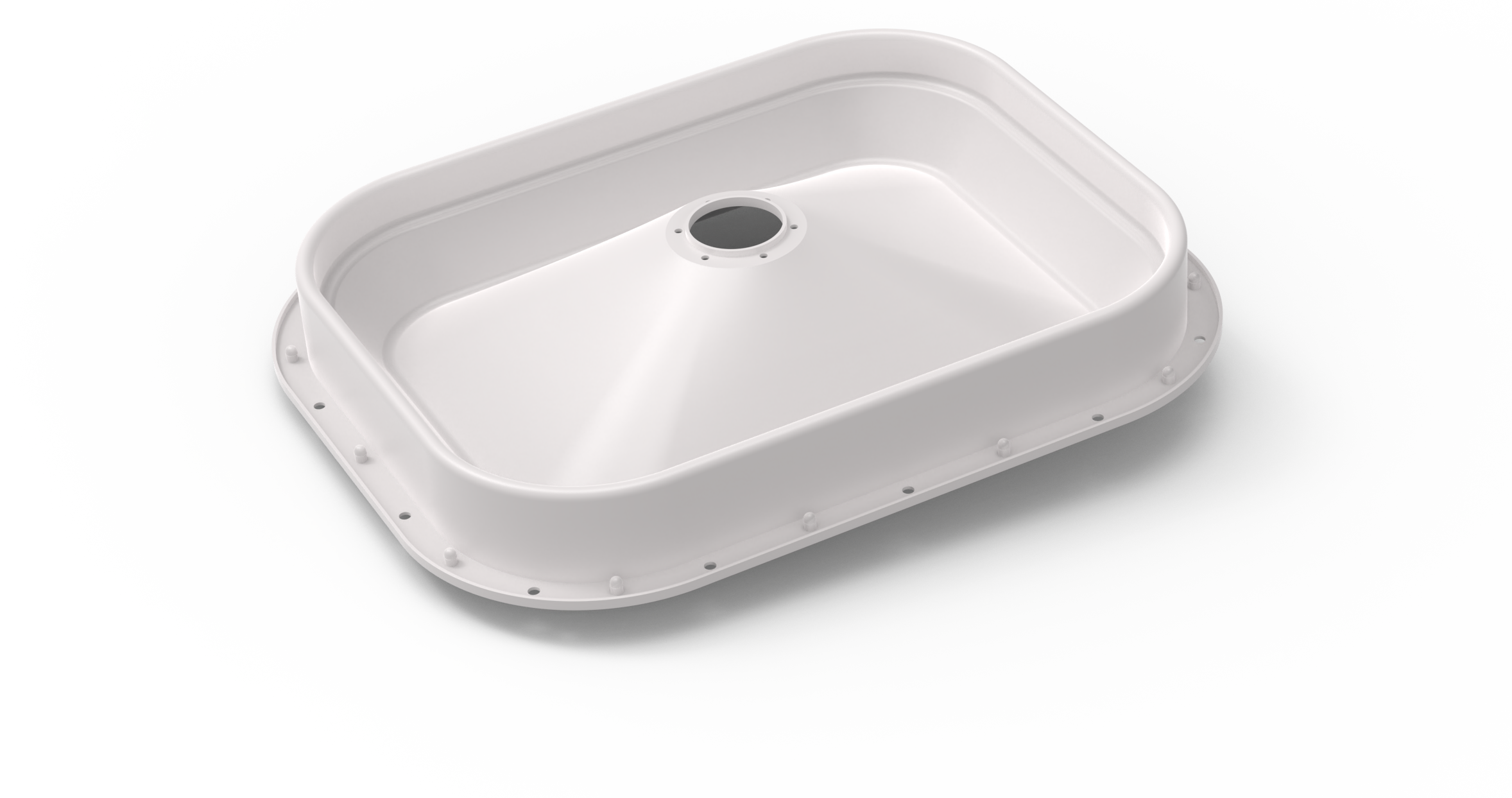

Silicone Membrane Dust Protection
Featuring an upgraded airtight dust-proof system, this dental milling machine solves the pain point of dust accumulation indenture processing. Sealed protection avoids circuit and mechanical failure caused by ultrafine dust, ensuring high-precision carving output at all times.

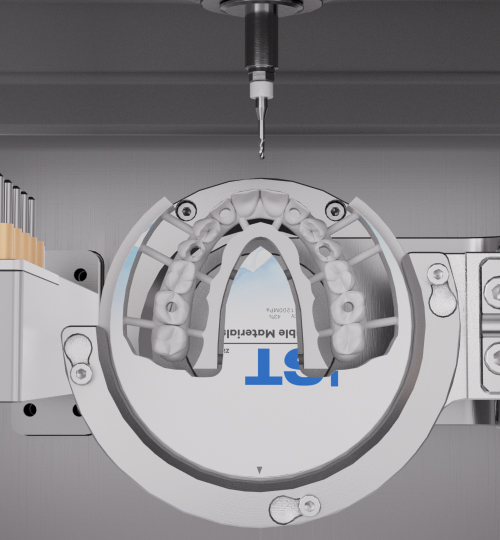

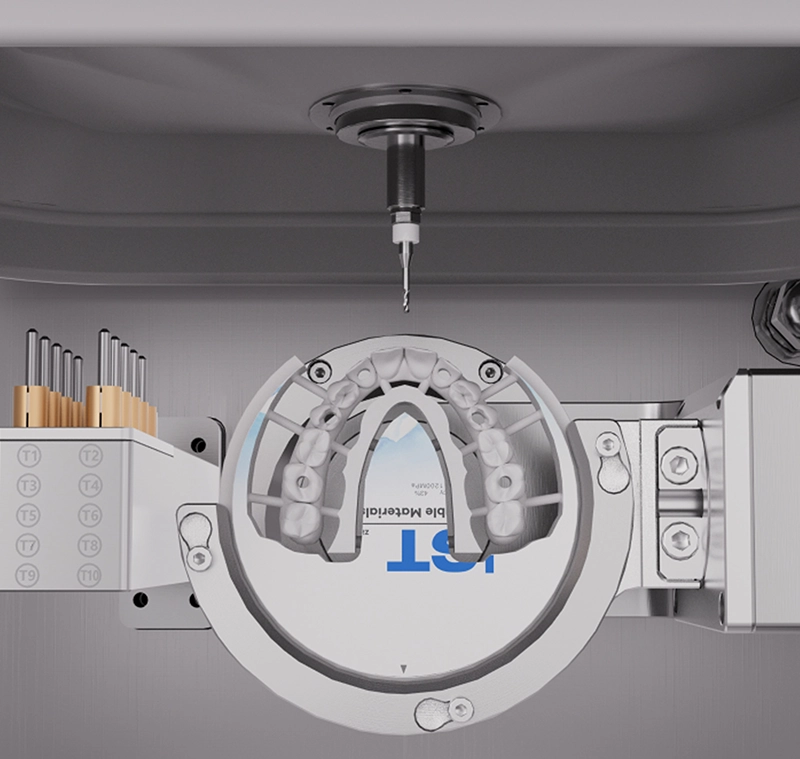

90° vertical milling
90°vertical milling precisely replicates natural tooth anatomy and surface texture,can achieve a machining accuracy of ± 0.02um.

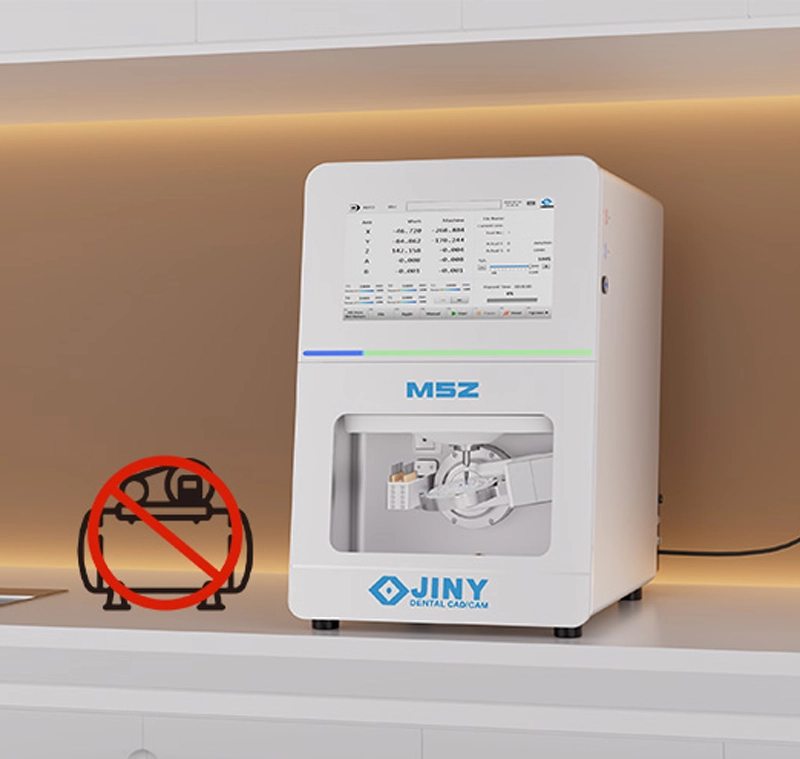

Compressor Free
Experience plug-and-play convenience with our air-free dental milling machine. Designed for dry machining, it eliminates the need for an external air compressor, saving space, reducing noise, and cutting maintenance costs.

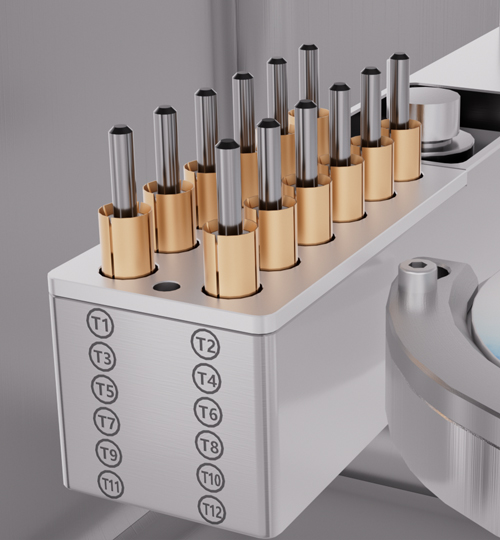

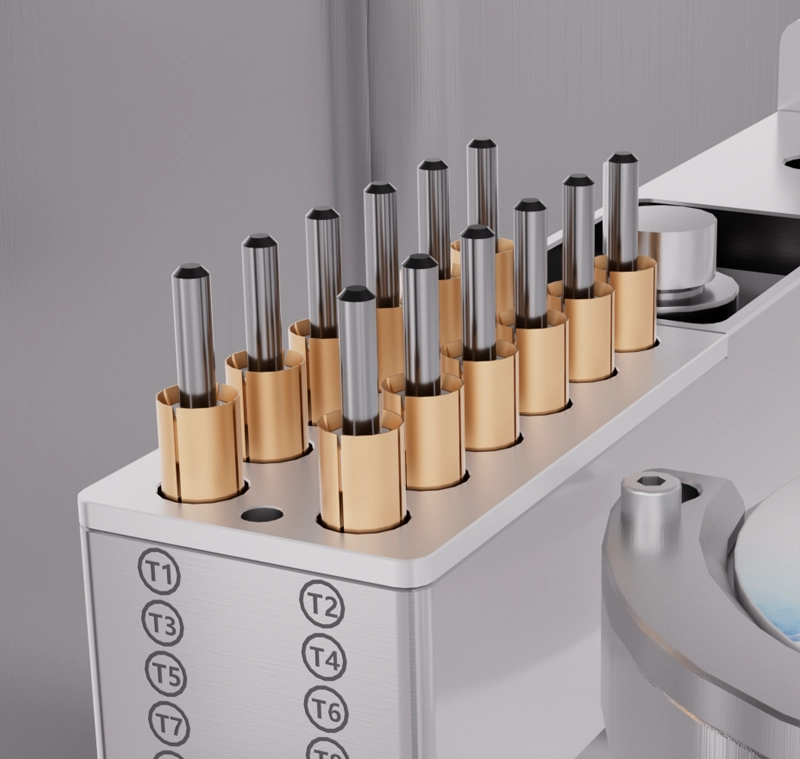

Auto Tools Changer
Equipped with a built-in 12-tool magazine, enabling automatic and free tool switching. It meets the processing demands of various dental materials, ensures continuous and efficient milling, and greatly improves production efficiency

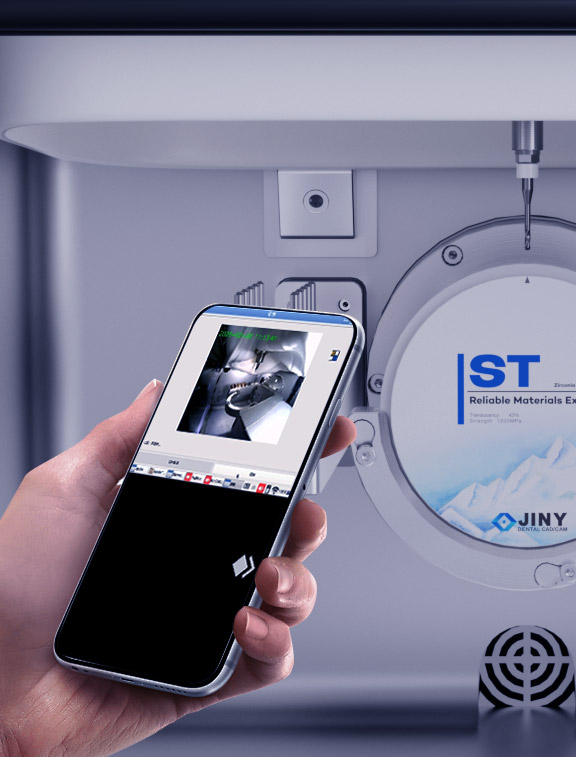

Monitor Anytime, Anywhere
Remote Viewing, Smarter Control
Built-in camera monitoring allows users to remotely check milling progress anytime via mobile devices, ensuring greater convenience and production visibility.

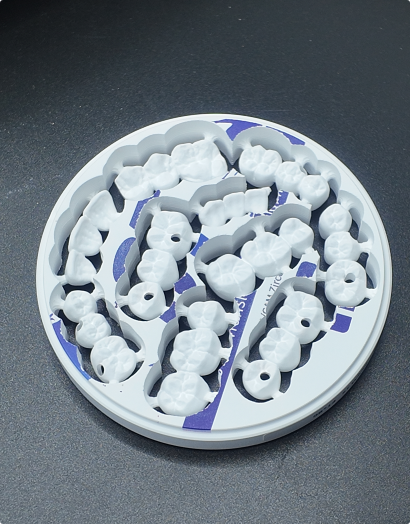

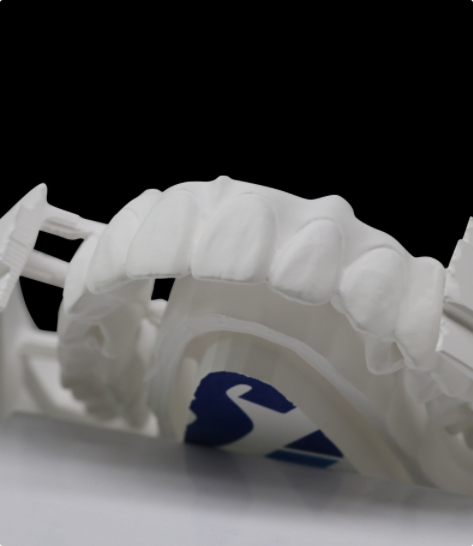

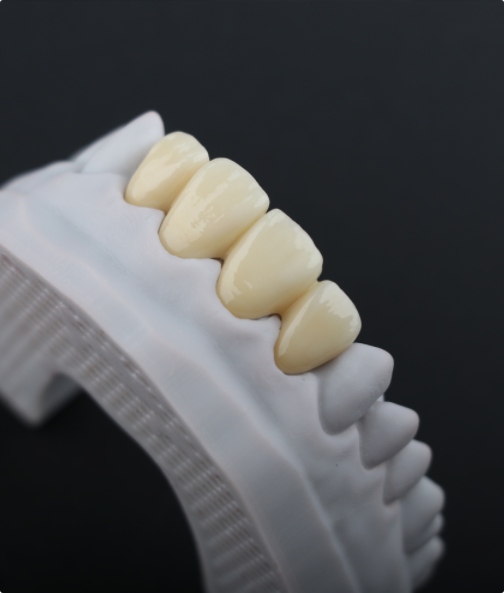

Precision Zirconia Milling for Fine Restoration Details
JDM5Z vs M5Z: Which Dry Milling Machine Should You Choose?
| Model | JDM5Z | M5Z |
|---|---|---|
| Comparison | ||
| Main Positioning | Dental laboratory production | Compact clinic / small lab workflow |
| Milling Mode | Dry Milling | Dry Milling |
| Materials | Zirconia, PMMA, PEEK, Wax | Zirconia, PMMA, PEEK, Wax |
| Tool Magazine | 10 | 12 |
| Spindle | 0.5 kW / Optional 1.8 kW | 0.5 kW |
| Weight | 222 kg | 115 kg |
| Main Advantage |
Rigid cast-iron construction for superior stability; high-power water-cooled spindle for demanding milling workloads |
Built-in camera; upgraded dust-protection system; compressor-free design for simpler daily operation |
Choose JDM5Z if you need a robust dry milling machine for regular dental laboratory production.
Choose M5Z if compact installation and compressor-free operation are higher priorities for your clinic or smaller lab.
Indications
Coping/Full Crown
Three-Unit Bridge
Inlay/Onlay
Veneers
Screw-Retained Crown
Partial Denture Frameworks
Super structures Over Bars
Full Dentures
Full Dentures without Teeth
Bite Splint
Tool list
| Zirconia milling burs | 2.0 / 1.5 / 1.0 / 0.6/ 0.3mm |
| PEEK/PMMA milling burs | 2.0 / 1.0 / 0.6mm |
Technical Specifications
| Model | M5Z-5 Axis dental milling machine |
| Function | |
| Machine size | 715X443X670mm(Excluding foot cups) |
| Weight | 115kG |
| Tool magazine | 12 |
| Input voltage | 220V |
| Max. spindle power | 0.5kW |
| Max. machine power | 1.2kW |
| A/B milling angle | A-axis ±360° B-axis ±30° |
| Milling mode | Dry milling |
| Max. spindle speed | 3,000-60,000rpm |
| Processing stroke method | XYZ:168/106/90 |
| Spindle cooling method | / |
| Millable material | Zirconia,PMMA,PEE,Wax |
| Average milling times |
Zirconia 7-15min PMMA 8-12min Wax 6-10min |
FAQ
Does the M5Z require an external air compressor?
No. The M5Z is designed to operate without an external air compressor, helping simplify installation and reduce additional equipment requirements.
What materials can the M5Z mill?
The M5Z supports dry milling of zirconia, PMMA, PEEK and wax.
Is the M5Z suitable for zirconia milling?
Yes. The M5Z can be used for zirconia dry milling as well as compatible PMMA, PEEK and wax workflows.
Is the M5Z suitable for a small dental lab?
Its compact and compressor-free design makes it particularly suitable for clinics and smaller laboratories that want an efficient dry milling workflow.
What is the difference between M5Z and JDM5Z?
The M5Z focuses on compact, compressor-free operation, while the JDM5Z is a heavier dental laboratory platform designed for regular production.
Can the M5Z support 0.3 mm ultra-fine milling?
Yes. With compatible 0.3 mm milling burs and the appropriate CAM strategy, the JDM5Z can support ultra-fine zirconia milling for detailed areas such as narrow fissures, fine occlusal anatomy, and delicate margins.
