JDM5 MAX is an industrial-grade dental implant milling machine designed for titanium implant bridges, bars, custom abutments and full-arch restorations. Its 140 × 150 mm square titanium plate capacity enables efficient multi-unit implant production for dental labs and milling centers.
Producing implant restorations requires more than standard dental milling. Titanium bridges, implant bars and complex full-arch restorations demand machine rigidity, stable 5-axis motion, effective cooling and reliable tool management.

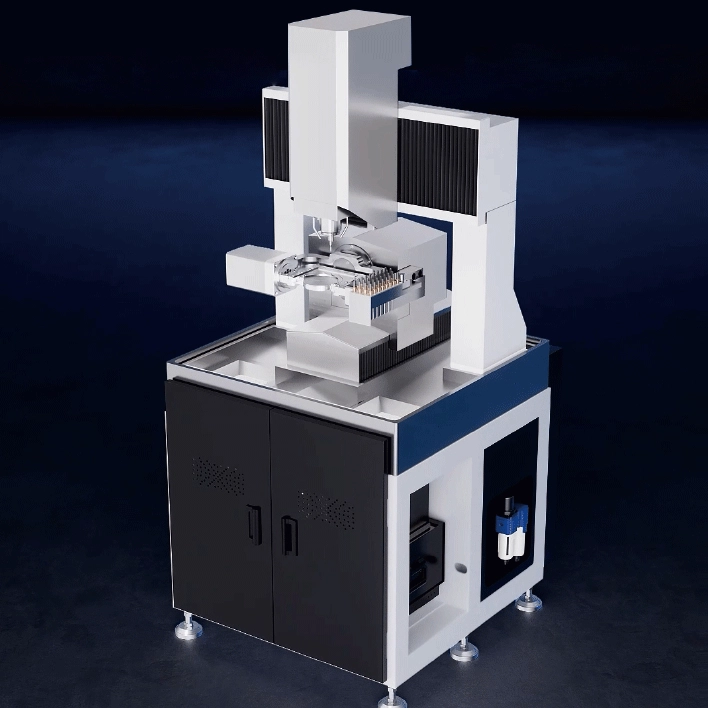

The JDM5 MAX combines industrial-level machine construction with a dental CAD/CAM workflow to support accurate and efficient implant production.
The JDM5 MAX is designed for laboratories and production centers handling a wide range of implant-supported restorations.
Mill large titanium full-arch frameworks and implant-supported bridges with stable 5-axis machining.
Produce titanium and CoCr implant bars for removable and fixed implant-supported restorations.

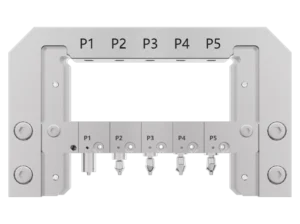

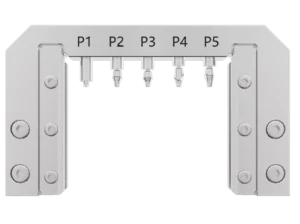

Use dedicated abutment fixtures for efficient production of individualized premilled titanium abutments.

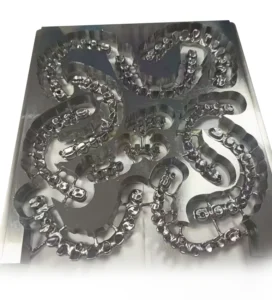

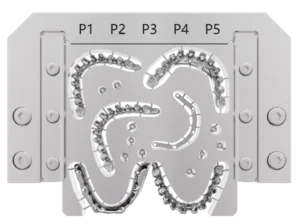

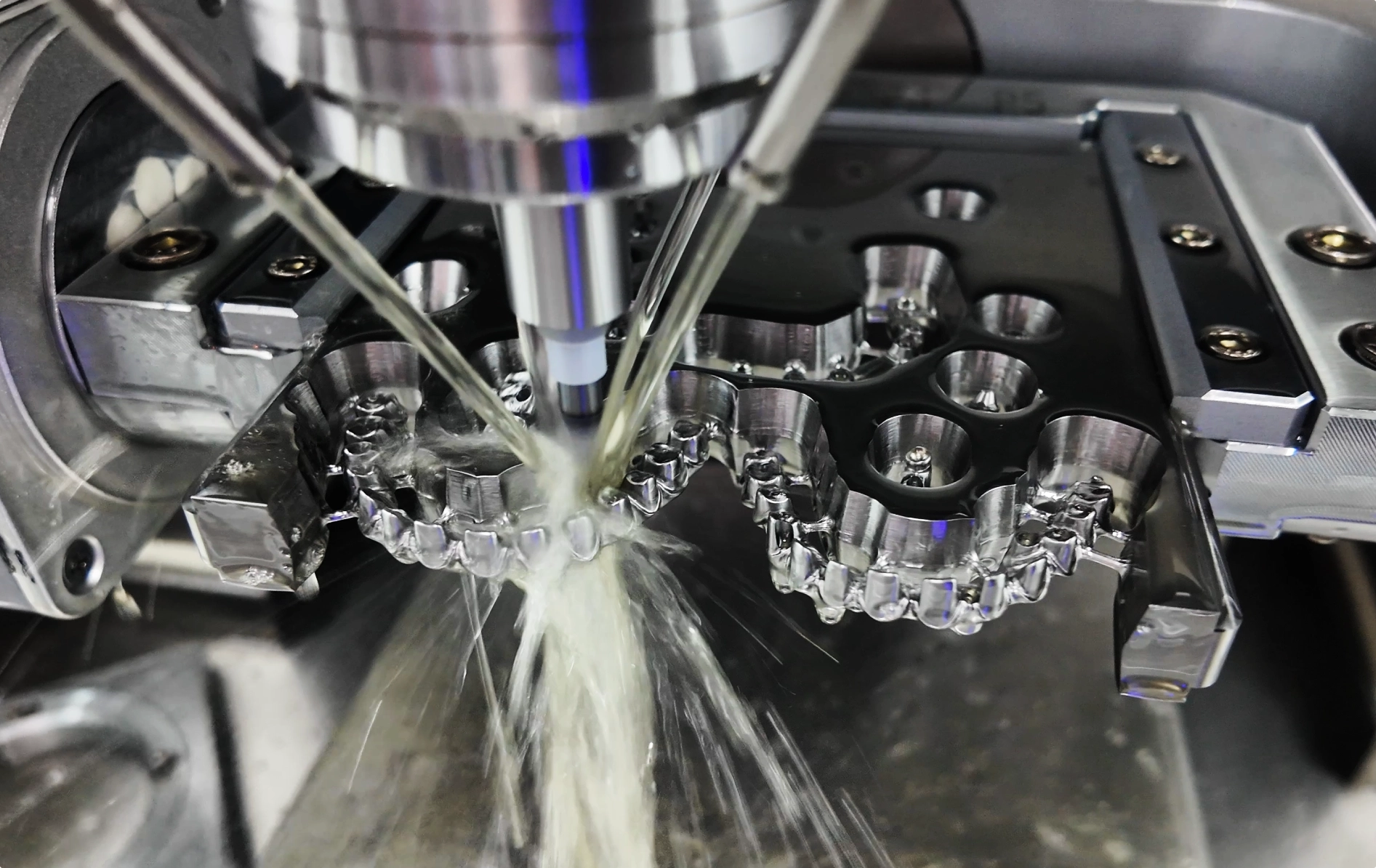

The JDM5 MAX supports 140 × 150 mm square titanium plate milling, providing a larger nesting area for long-span implant restorations compared with conventional round dental discs.
A single setup can accommodate approximately 9-11 implant bridges, helping milling centers improve material utilization and production efficiency.

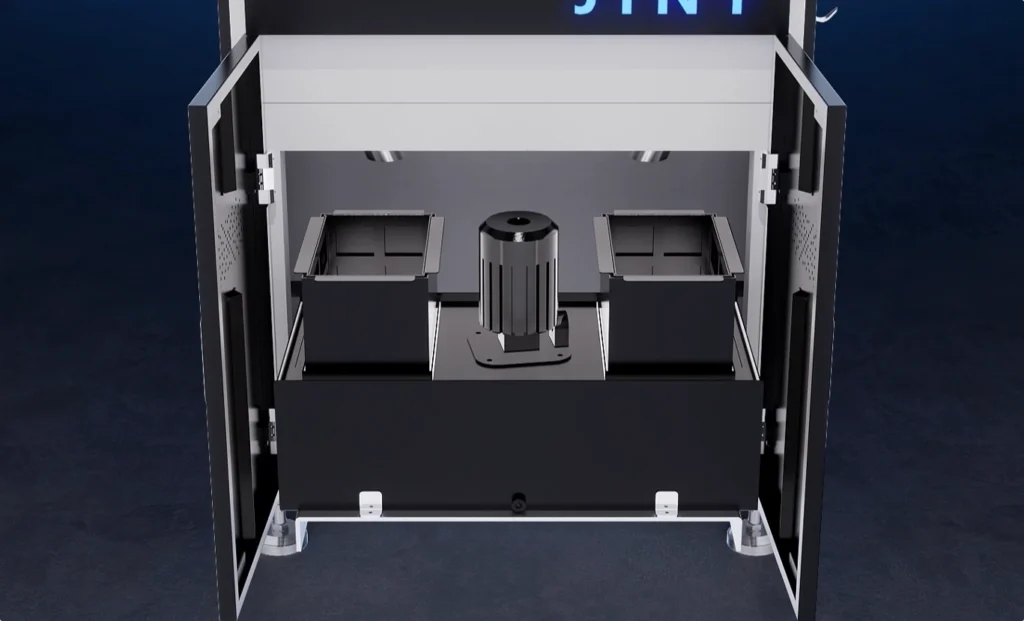

Designed with a spacious bottom cabinet, providing ample room for accessories such as water tanks and chillers, ensuring a cleaner workspace and more efficient equipment integration.

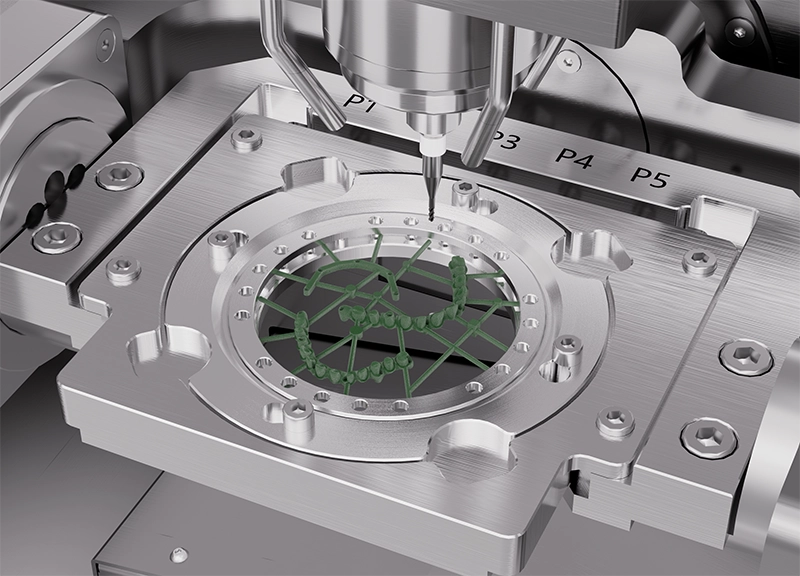

Additive and subtractive manufacturing can be combined for complex dental implant production.
3D printing can efficiently create complex metal frameworks, while precision milling can be used to finish critical surfaces that require accurate machining.
| Model | JDM5 MAX-5 Axis implant dental milling machine |
| Function | |
| Machine size | 933X850X1786mm(Excluding foot cups) |
| Weight | 953kg |
| Tool magazine | 34 |
| Input voltage | 220V |
| Max. spindle power | 2.5kW/Optional 4kW |
| Max. machine power | 5.3kW/Optional 4kW spindle with total machine power of 6.5kW |
| Fixture | Round disc:98mm/Square plate:140*150mm |
| A/B milling angle |
(Square Plate )A-axis 360° B-axis ±30° (Round disc )A-axis 360° B-axis ±45° |
| Milling mode | Wet milling |
| Max. spindle speed | 3,000-60,000rpm |

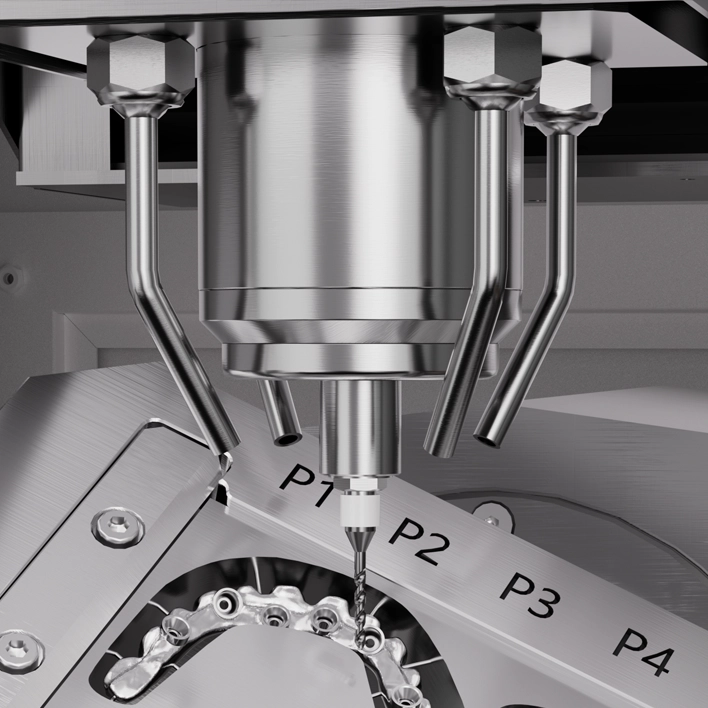

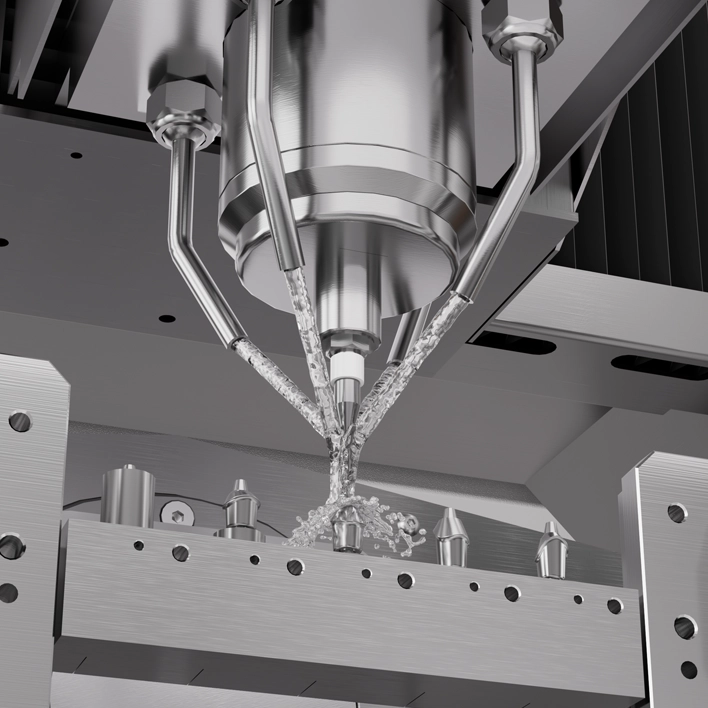

| Spindle cooling method | Water Cooling |
| Millable material | Titanium block (including square plate),premilled abutment,glass ceramics,composites,CoCr,PEEK,PMMA,Wax |
| Average milling times |
Glass ceramics 15-30min Abutment 8-13min Implant bar 90-150min Implant bridge 90-180min Wax 6-10min |
A dental implant milling machine is a CNC dental milling system designed to manufacture implant-supported restorations such as custom abutments, implant bridges, implant bars and full-arch frameworks. Machines used for titanium implant milling generally require high rigidity, suitable spindle performance, wet cooling and precise multi-axis machining.
Yes. The JDM5 MAX supports wet milling of titanium and is designed for applications including implant bridges, implant bars and other implant-supported restorations.

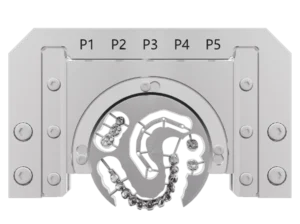

The JDM5 MAX supports square titanium plates up to 140 × 150 mm as well as standard 98 mm round dental discs.
Depending on restoration size and nesting strategy, the 140 × 150 mm square titanium plate can accommodate approximately 8–10 implant bridges in one setup.
Implant milling machines designed for titanium and CoCr generally require greater rigidity, wet cooling and stronger machining capability because metals create higher cutting loads than zirconia and other softer dental CAD/CAM materials.
Yes. Its large titanium workpiece capacity, 34-position tool magazine and heavy-duty structure make it particularly suitable for professional dental labs and milling centers producing implant restorations.
