JDM5Z Robot Dental Lab Milling Machine with AI Robot Automation
JDM5Z Robot AI is an advanced dental lab milling machine integrated with robotic automation, enabling automatic material handling, fixture changing and continuous production with minimal operator intervention.
AI Robot Automation System for Dental Milling
JDM5Z Robot AI integrates a robotic arm that automatically handles:material loading;material unloading,disc transportation;Fixture replacement
Dry & Wet Milling Compatibility
Supporting both dry and wet milling modes, the system enables efficient processing of a wide range of dental materials while improving workflow flexibility.
Engineered for Precision
Designed for high-precision dental milling, the system ensures accurate margins, smooth surfaces, and reliable performance for crowns, bridges, implants, and complex restorations.
24/7 Continuous Milling
Engineered for stable and reliable operation, the system supports 24-hour uninterrupted milling, maximizing productivity and ensuring efficient, continuous workflow for dental laboratories.
Remote Milling Monitoring
Monitor the milling process anytime, anywhere through remote access. Real-time machine status, machining progress, and operational data can be viewed instantly, enabling efficient production management and reducing downtime.
5-Axis Dental Lab Milling Machine with Robotic Integration
The “hexagonal warrior” in the dental milling machine industry

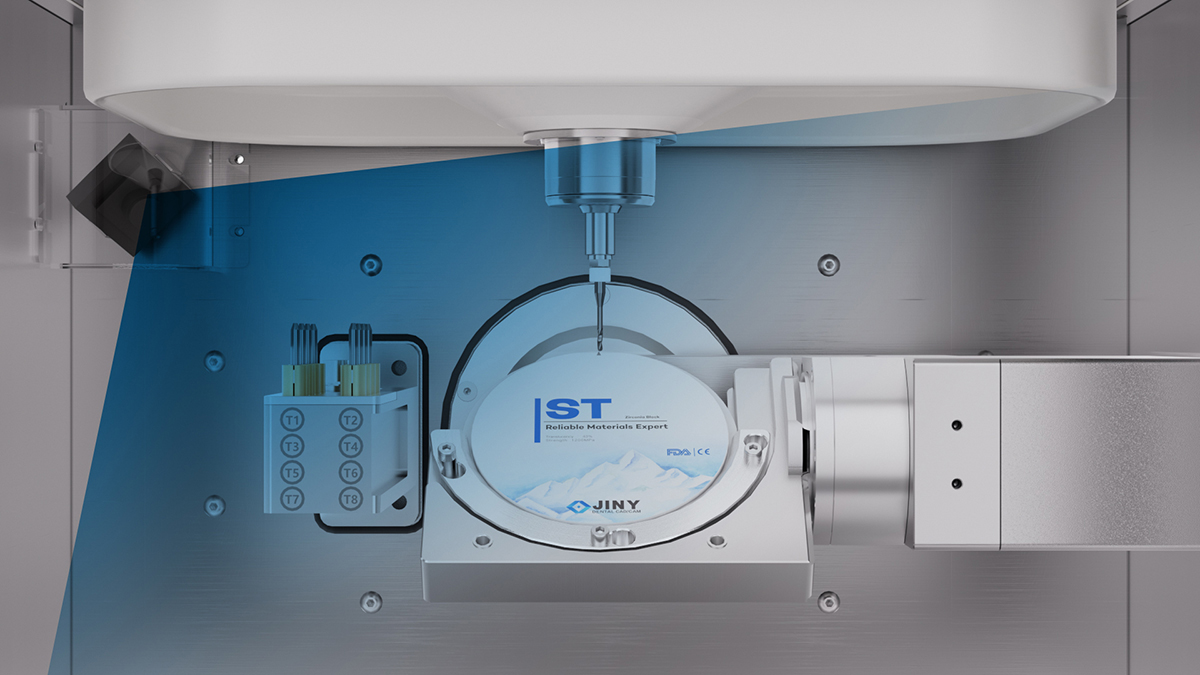

Add cameras for easier observation
This device adds camera monitoring to facilitate understanding of the operating status of the machine.

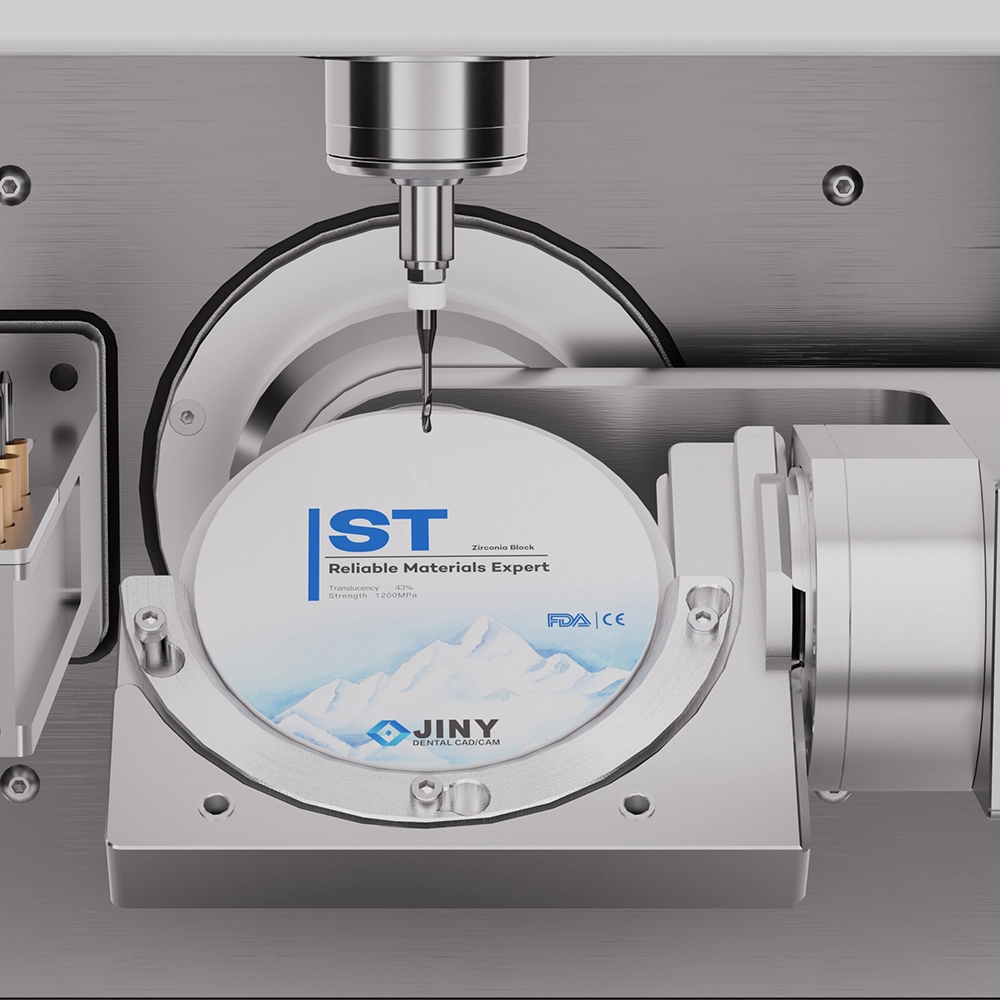

Precision Zirconia Milling for Fine Restoration Details
JDM5Z Robot AI vs Traditional Dental Milling Machine
| Model | Traditional Milling Machine | JDM5Z Robot AI |
|---|---|---|
| Comparison | ||
| Disc Loading | Manual | Robot Automatic |
| Fixture Change | Manual | Automatic |
| Operator Involvement | High | Reduced |
| Production Hours | Limited | Extended |
| Automation Level | Basic | Robotic Automation |
| Unattended Production | Limited | Supported |
8 tools magaine
Efficient Automatic Tool Changing
Indications
Coping/Full Crown
Three-Unit Bridge
Inlay/Onlay
Veneers
Screw-Retained Crown
Custom Abutment
Thimble Bar
Partial Denture Frameworks
Super structures Over Bars
Full Dentures
Full Dentures without Teeth
Bite Splint
Fixture

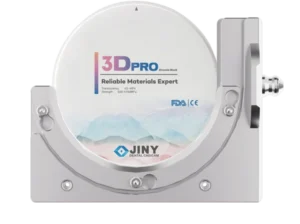

Round disc fixture

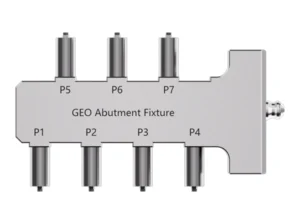

GEO abutment fixture

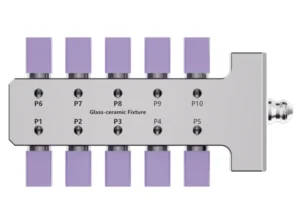

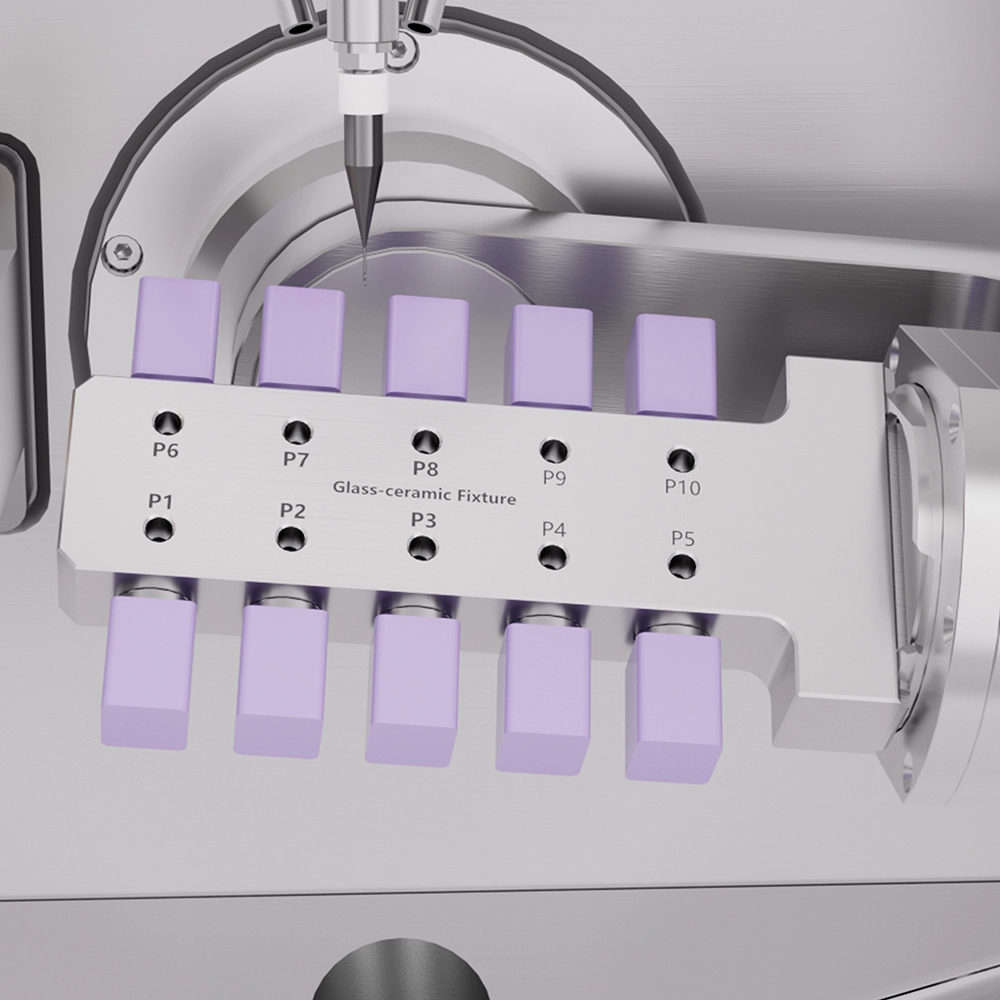

Glass ceramics fixture

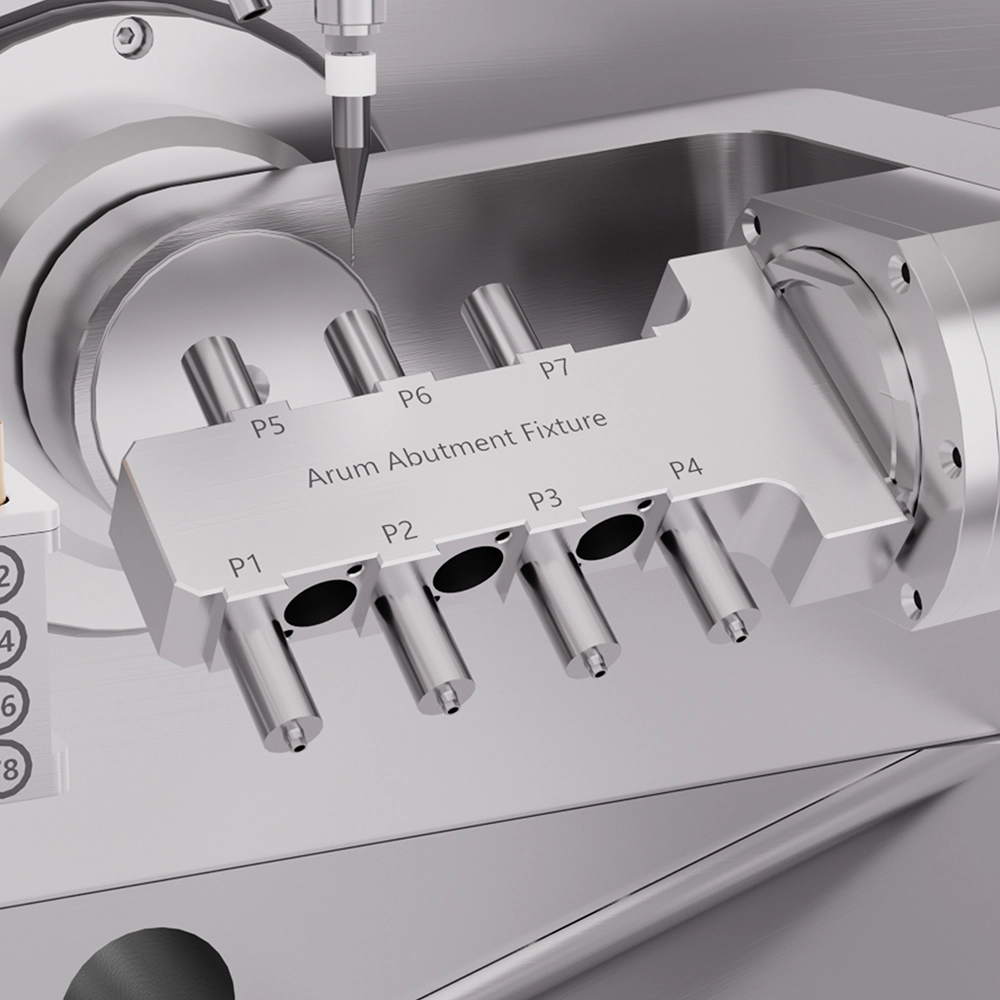

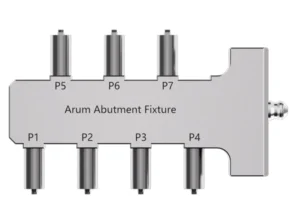

Arum abutment fixture
Technical Specifications
| Model | JDM5Z Robot-5 axis dental milling machine |
| Function | |
| Machine size | 752X470X690mm(Excluding foot cups) |
| Weight | 148kG |
| Tool magazine | 8 |
| Input voltage | 220V |
| Max. spindle power | 0.5kW |
| Max. machine power | 1.2kW |
| Milling angle | A-axis ±360° B axis ±30° |
| Milling mode | Wet/dry milling |
| Max. spindle speed | 3,000-60,000rpm |
| Spindle cooling method | Air cooling |
| Millable material | Abutment,glass ceramics,PMMA,PEEK,Wax |
| Average milling times |
Abutment 8-13min Glass ceramics 15-30min PMMA 8-12min PEEK 180-240min |
FAQ
What is a robotic dental lab milling machine?
A robotic dental lab milling machine combines dental milling technology with robotic automation to reduce manual loading and improve production efficiency.
What makes JDM5Z Robot AI different from a standard dental milling machine?
JDM5Z Robot AI integrates robotic material handling and automatic fixture changing, allowing more automated production workflows.
Can the robot automatically change milling fixtures?
Yes. The robotic system is designed to automatically handle fixture changing during production workflows.
What materials can JDM5Z Robot AI mill?
It supports common dental materials including abutment,glass ceramics,zirconia, PMMA, PEEK and wax depending on configuration.
Is JDM5Z Robot AI suitable for large dental laboratories?
Yes. It is designed for dental labs that require higher production efficiency and automation.
Does robotic automation improve dental milling productivity?
Yes. By reducing manual loading and setup tasks, robotic automation helps improve machine utilization and workflow efficiency.
