5-Axis AI dental milling machine
JDM5Z Robot
Dedicated to Precision Abutment Milling
Dedicated to Precision Abutment Milling
A professional 4-axis dental milling machine equipped with multiple fixtures, enabling stable and accurate abutment machining.
Dry & Wet Milling Compatibility
Supporting both dry and wet milling modes, the system enables efficient processing of a wide range of dental materials while improving workflow flexibility.
Engineered for Precision
Designed for high-precision dental milling, the system ensures accurate margins, smooth surfaces, and reliable performance for crowns, bridges, implants, and complex restorations.
24/7 Continuous Milling
Engineered for stable and reliable operation, the system supports 24-hour uninterrupted milling, maximizing productivity and ensuring efficient, continuous workflow for dental laboratories.
Remote Milling Monitoring
Monitor the milling process anytime, anywhere through remote access. Real-time machine status, machining progress, and operational data can be viewed instantly, enabling efficient production management and reducing downtime.
Milliing Times
The "hexagonal warrior" in the dental milling machine industry

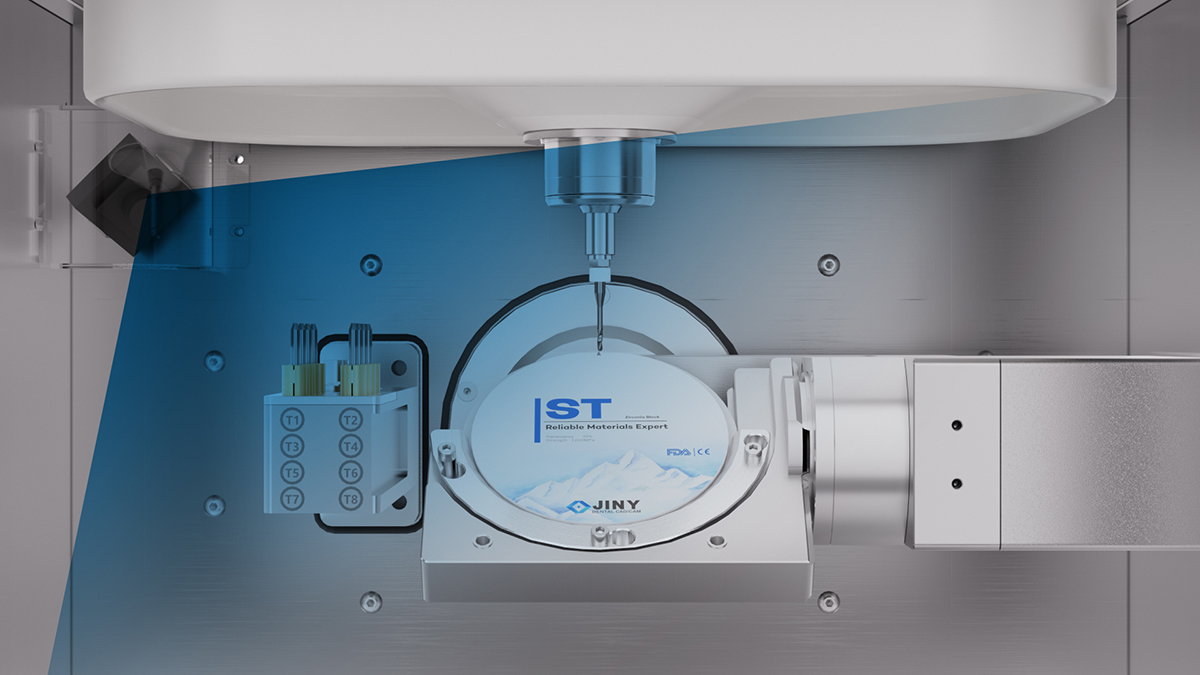

Add cameras for easier observation
This device adds camera monitoring to facilitate understanding of the operating status of the machine.
Millable material
Glass ceramics
Abutment
PEEK
PMMA
Wax
Indications
Coping/Full Crown
Three-Unit Bridge
Inlay/Onlay
Veneers
Screw-Retained Crown
Custom Abutment
Thimble Bar
Partial Denture Frameworks
Super structures Over Bars
Full Dentures
Full Dentures without Teeth
Bite Splint
Fixture

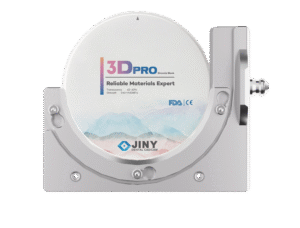

Round disc fixture
GEO abutment fixture
Glass ceramics fixture
Arum abutment fixture
8 tools magaine
Efficient Automatic Tool Changing
Specification
| Model | JDM5Z Robot-5 axis dental milling machine |
| Function | |
| Machine size | 752X470X690mm(Excluding foot cups) |
| weight | 148kG |
| Tool magazine | 8 |
| Input voltage | 220V |
| Max. spindle power | 0.5kW |
| Max. machine power | 1.2kW |
| Milling angle | A-axis ±360° B axis ±30° |
| Mliing mode | Wet/dry milling |
| MAx. spindle speed | 3,000-60,000rpm |
| Spindle cooling method | Air cooling |
| Millable material | Abutment,glass ceramics,PMMA,PEEK,Wax |
| Average milling time |
Abutment 8-13min Glass ceramics 15-30min PMMA 8-12min PEEK 180-240min |
