JDM5Z Pro 12-Disc Auto Disc Changer Dental Milling Machine
JDM5Z Pro 5-axis dry dental milling machine for automated, high-volume dental lab production. Load up to 12 discs and keep milling zirconia, PMMA, PEEK and wax with less manual intervention.
The Best Value Dry Milling Solution

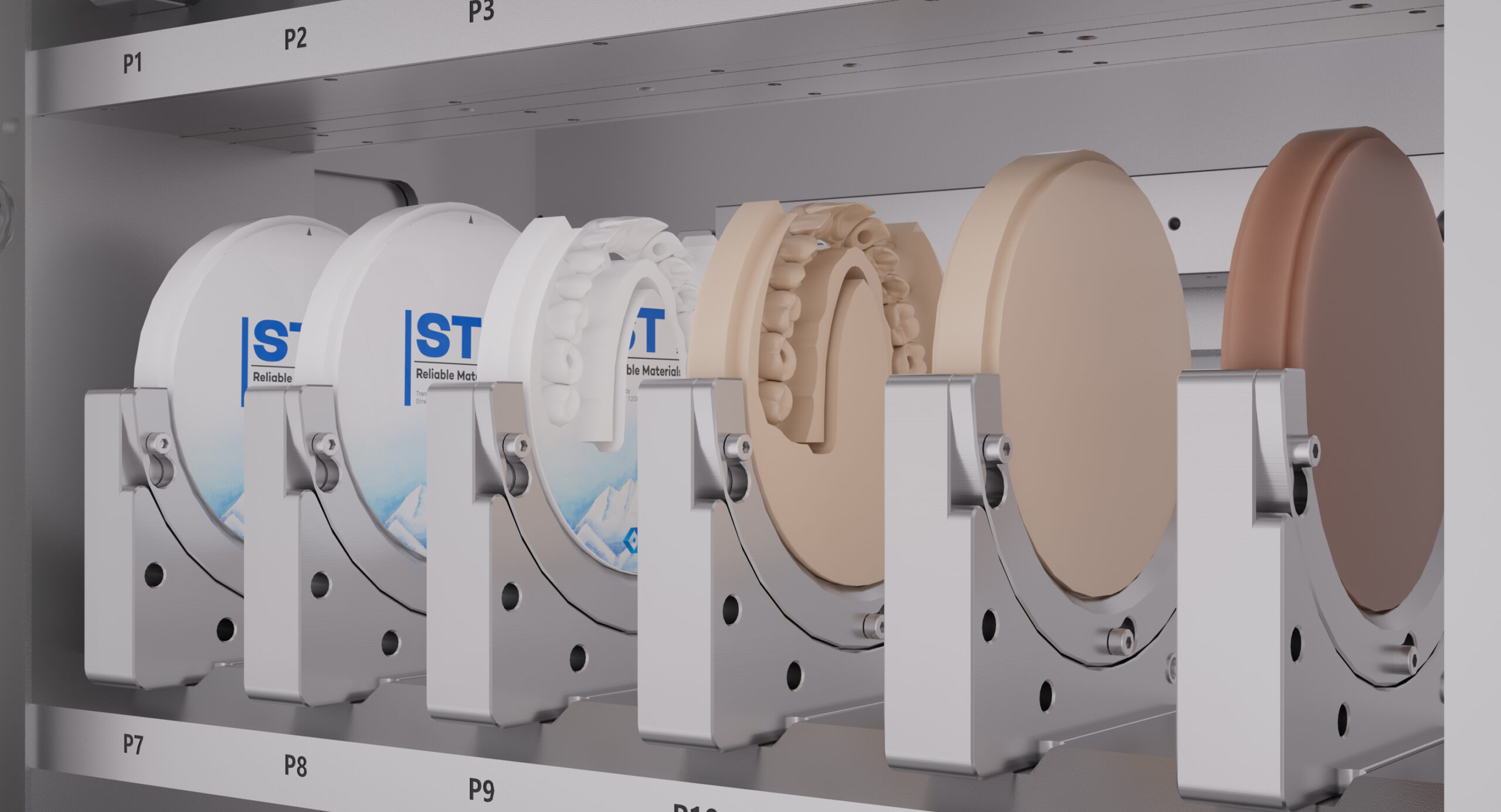

12-Disc Automatic Changer
Equipped with a 12-disc automatic changing system, enabling continuous and efficient milling with reduced manual intervention.
24/7 Continuous Milling
Engineered for stable and reliable operation, the system supports 24-hour uninterrupted milling, maximizing productivity and ensuring efficient, continuous workflow for dental laboratories.
90° Vertical Milling Structure

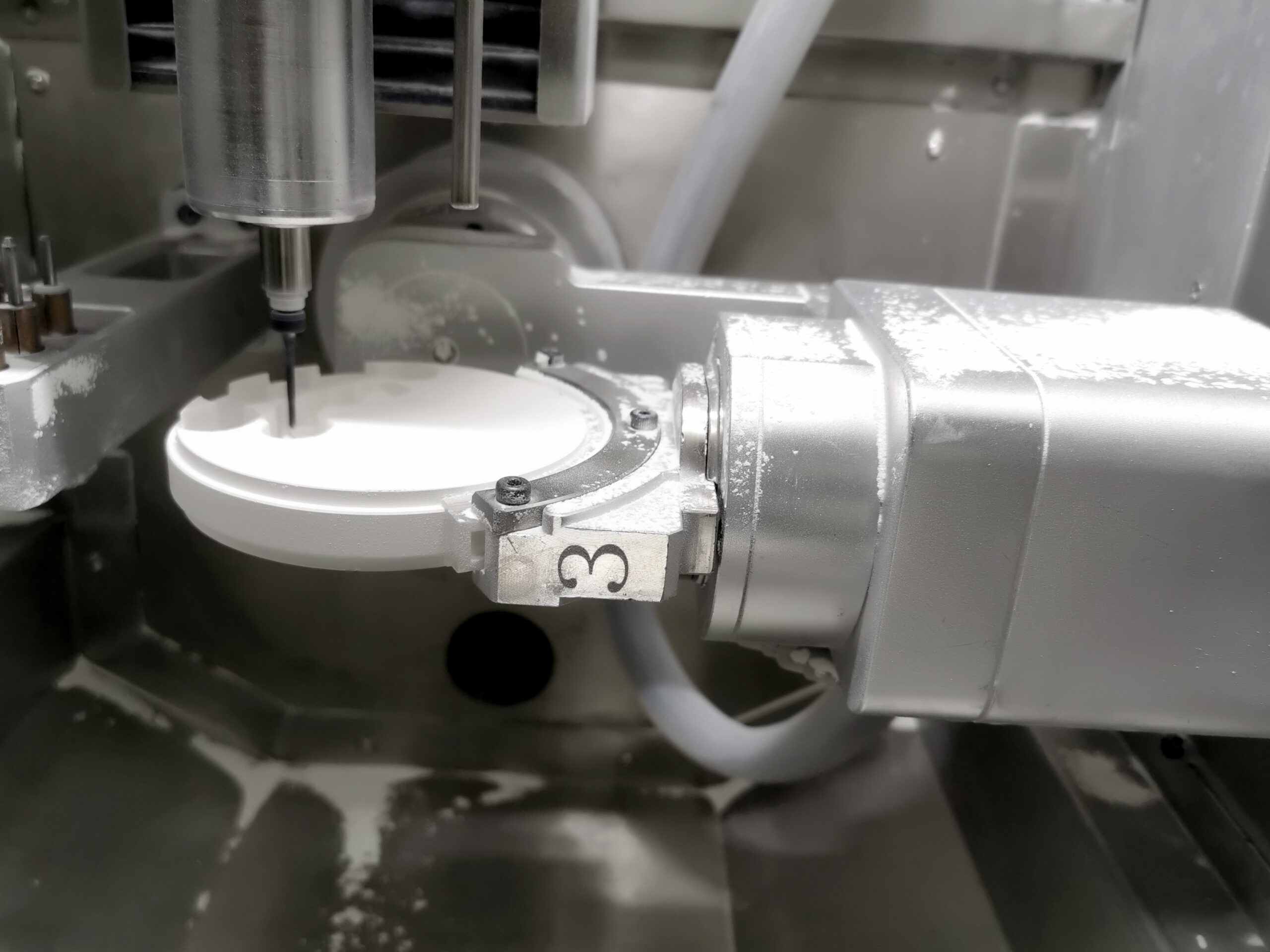

Featuring a 90° vertical milling design, the machine delivers superior rigidity, smoother chip evacuation, and enhanced machining precision for complex restorations.
Standard dental milling machine
Finish one disc → Technician changes disc → Restart production → Machine waits overnight
JDM5Z Pro
Queue jobs → Automatic disc loading → Continuous milling → Overnight production
High Precision Milling
Engineered for exceptional accuracy and stability, the system delivers highly precise milling results, ensuring superior fit, consistency, and restoration quality.
Intelligent Robotic Fixture Loading
Featuring automated robotic fixture handling, the machine seamlessly grips and changes fixtures, improving workflow automation, reducing labor costs, and ensuring continuous, efficient production.
Digital Workflow
Integrated with JINY Connect, machine status, milling progress,
and production data are managed in one platform.
More than remote control, JINY Connect is a complete digital production management system.

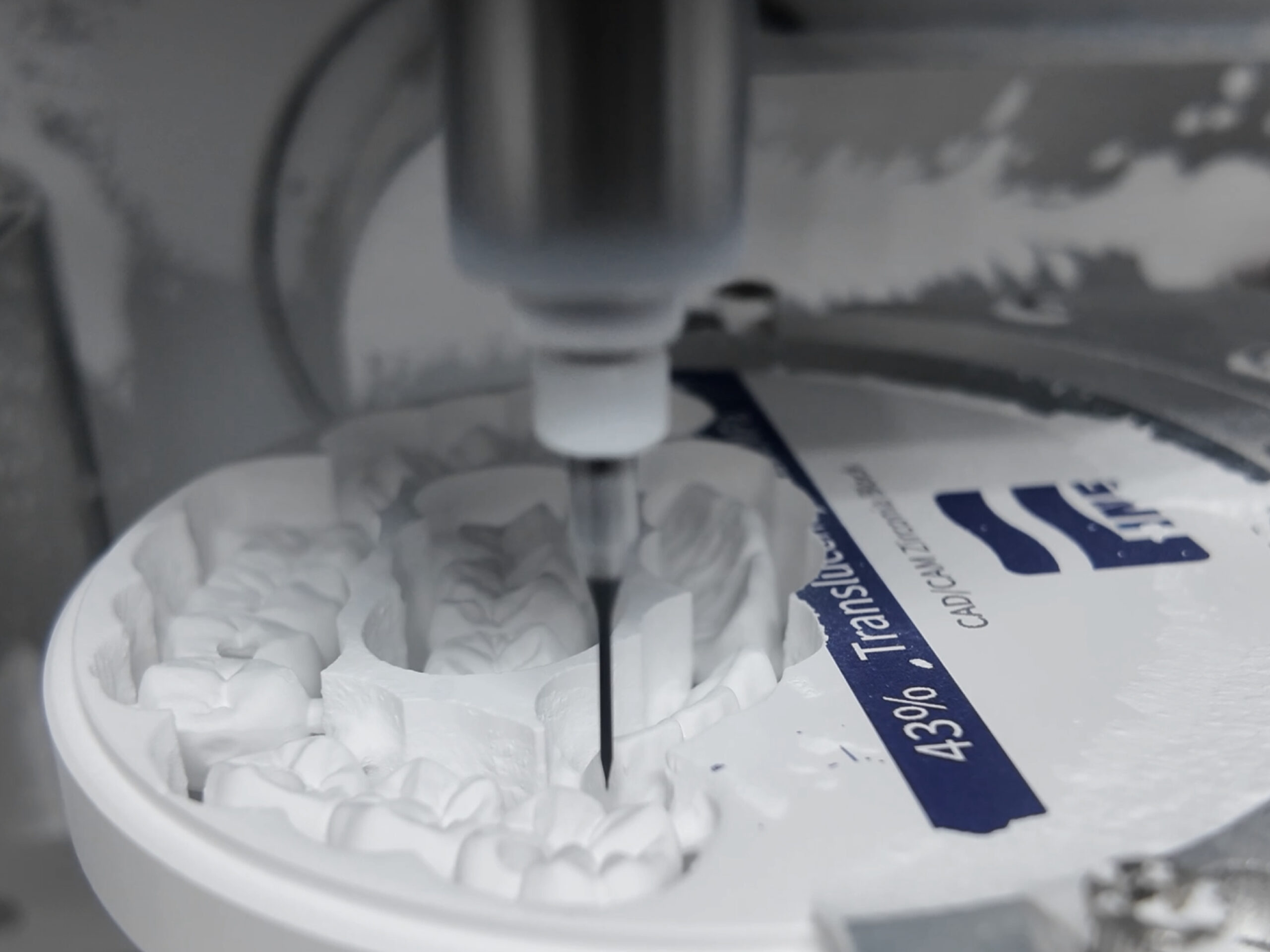

Precision Zirconia Milling for Fine Restoration Details
Highlights
Auto Disc Changer vs Standard Dental Milling Machine
| Model | Standard Mill | JDM5Z Pro |
|---|---|---|
| Comparison | ||
| Disc loading | Manual | Automatic |
| Disc capacity | 1 | 12 |
| Overnight production | Limited | Designed for continuous production |
| Operator intervention | Frequent | Reduced |
| 5-axis milling | Depends on model | Yes |
| Automatic tool change | Depends | 8 tools |
| Remote production management | Depends | JINY Connect |
Indications
Coping/Full Crown
Three-Unit Bridge
Inlay/Onlay
Veneers
Screw-Retained Crown
Partial Denture Frameworks
Super structures Over Bars
Full Dentures
Full Dentures without Teeth
Bite Splint

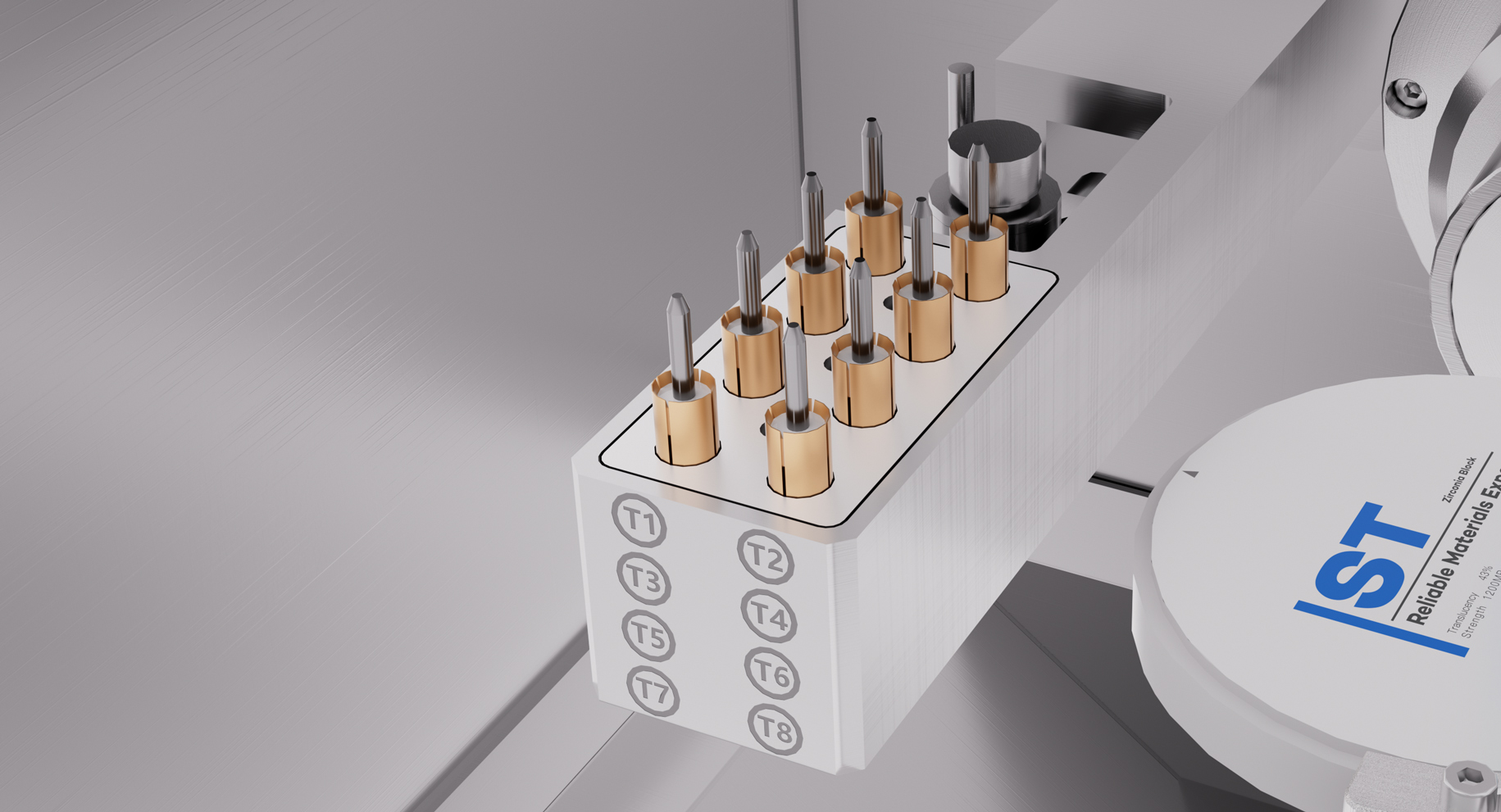

Tool list
| Zirconia milling burs | 2.0 / 1.5 / 1.0 / 0.6/ 0.3mm |
| PEEK/PMMA milling burs | 2.0 / 1.0 / 0.6mm |
Technical Specifications
| Model | JDM5Z Pro-5 axis dental milling machine |
| Function | |
| Machine size | 1051X830X5mm(Excluding foot cups) |
| Weight | 397kG |
| Tool magazine | 8 |
| Input voltage | 220V |
| Max. spindle power | 0.5kW |
| Max. machine power | 1.5kW |
| Milling angle | A-axis ±360° B-axis +30° -90° |
| Milling mode | Dry milling |
| Max. spindle speed | 3,000-60,000rpm |
| Spindle cooling method | Air cooling |
| Auto disc changer capacity | 12 |
| Millable material | Zirconia,PEEK,PMMA,PEEK,Wax |
| Average milling times |
Zirconia 7-15min PMMA 8-12min PEEK 180-240min |
FAQ
What is an auto disc changer dental milling machine?
An auto disc changer dental milling machine automatically loads and changes material discs during milling, reducing manual handling and supporting longer unattended production.
How many discs can JDM5Z Pro hold?
JDM5Z Pro can hold up to 12 discs in its automatic disc changer.
Can JDM5Z Pro run overnight without an operator?
Yes. JDM5Z Pro is designed for 24/7 continuous milling with reduced manual intervention, making it suitable for overnight production.
What materials can JDM5Z Pro mill?
JDM5Z Pro supports dry milling of zirconia, PMMA, PEEK, and wax.
How long does it take to mill a zirconia crown?
Typical zirconia milling time is approximately 7–15 minutes, depending on the restoration design and milling strategy.
What warranty and after-sales support are included?
Warranty and after-sales support depend on the sales region and configuration. Contact JINY for the warranty terms and local support details.
