4-Axis abutment dental milling machine
JDM4T
Dedicated to Precision Abutment Milling
Dedicated to Precision Abutment Milling
A professional 4-axis dental milling machine equipped with multiple fixtures, enabling stable and accurate abutment machining.
Enhanced Milling Stability
Designed with a vertical structure, the machine provides superior cutting stability, ensuring higher precision and consistent milling results.
Square Titanium Plate Milling
Supports quick switching between multiple fixtures, providing greater flexibility and efficiency for various dental milling applications.
Precision in Every Motion
Powered by a high-performance servo motor system, the machine ensures precise positioning, smooth operation, and stable milling accuracy for complex dental restorations.
1.8KW
Spindle power
· Professional water-cooled system extends machine service life;
· Integrated casting body guarantees stable milling;
· Provides reliable stability and precision
Milliing Times
The "hexagonal warrior" in the dental milling machine industry

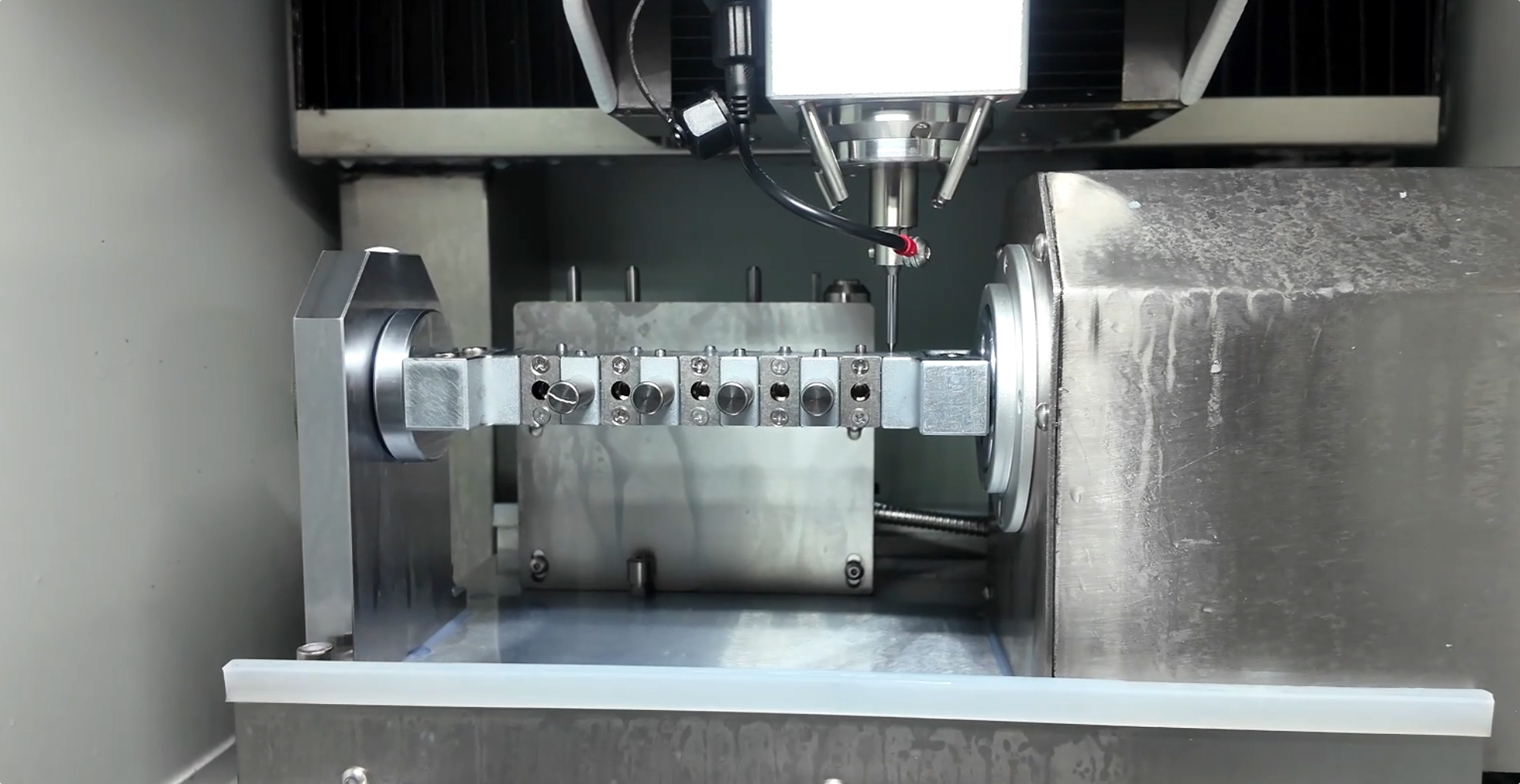

Intelligent Auto Calibration
Automatically calibrates key parameters to ensure stable performance, enhanced accuracy, and efficient operation.
Millable material
Titanium Block

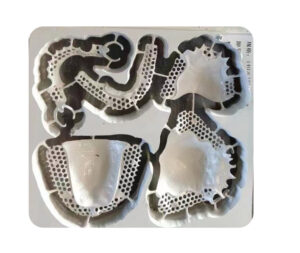

PEEK
Glass ceramics
Abutment
PMMA
Wax
Indications
Coping/Full Crown
Three-Unit Bridge
Inlay/Onlay
Veneers
Screw-Retained Crown
Custom Abutment
Thimble Bar
Partial Denture Frameworks
Super structures Over Bars
Full Dentures
Full Dentures without Teeth
Bite Splint
Fixture
Round disc fixture
Square plate fixture
3 Abutment +3 glass ceramics fixture
28 Glass ceramics fixture
5 Abutment+5 Glass ceramics fixture
6 abutment fixture
9 Abutment fixture
8 tools magaine
Efficient Automatic Tool Changing
Specification
| Model | JDM4T-4 axis dental milling machine |
| Function | |
| Machine size | 566X611X1542mm(Excluding foot cups) |
| weight | 391kG |
| Tool magazine | 8 |
| Input voltage | 220V |
| Max. spindle power | 1.8kW |
| Max. machine power | 3.5kW |
| Milling angle | A-axis ±360° |
| Mliing mode | Wet milling |
| MAx. spindle speed | 3,000-60,000rpm |
| Spindle cooling method | Water cooling |
| Millable material | Abutment,glass ceramics,PMMA,PEEK,Wax |
| Average milling time |
Abutment 8-13min Glass ceramics 15-30min PMMA 8-12min PEEK 180-240min |
