Precision You Can Trust for Metal Milling
T52DW

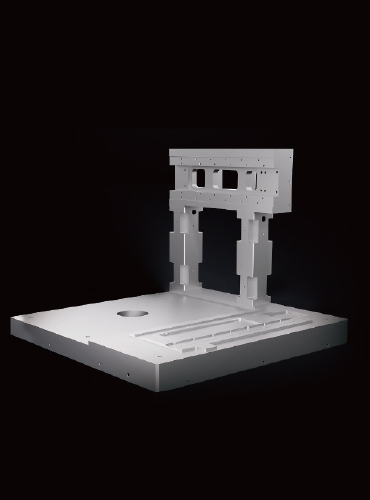

One-piece Cast-Iron Frame,
Increased rigidity for stable, durable milling
T52DW is built on a one-piece cast-iron structure with higher mass and natural damping—helping absorb cutting vibration before it becomes chatter.
Excellent Precision and Durability
HD Smart Touch screen
Featuring a high-definition smart touchscreen, the system offers smooth interaction and intuitive control for daily milling tasks.
Engineered for Precision
Designed for high-precision dental milling, the system ensures accurate margins, smooth surfaces, and reliable performance for crowns, bridges, implants, and complex restorations.
High-power spindle
The high-power spindle provides exceptional cutting force and consistent performance, enabling fast and accurate machining across a wide range of dental applications.
Adventures
5-Axis with 90°vertical milling
90°vertical milling precisely replicates natural tooth anatomy and surface texture,can achieve a machining accuracy of ± 0.02um.
Casting process base column
Solid and stable, not easily deformed, making milling machine operation more stable.

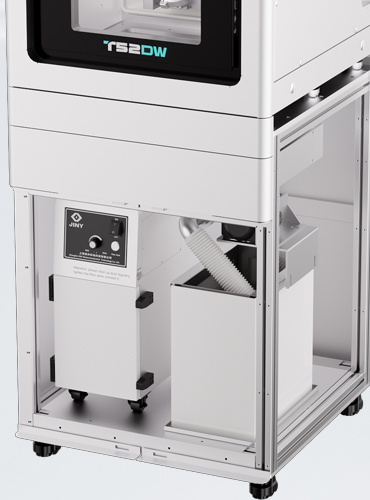

High-Capacity Base Cabinet
Designed with a spacious internal storage compartment for easy placement of water tanks, dust collectors, and other dental milling accessories.
Telescopic Sealed Tool Magazine
It automatically retracts and closes when not in use, effectively preventing processing dust and debris from entering
Millable material

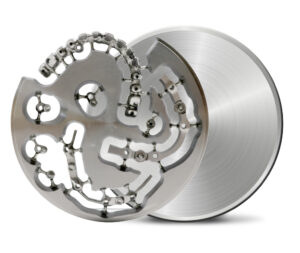

Titanium Block
Zirconia
PEEK
Glass ceramics
Abutment
PMMA

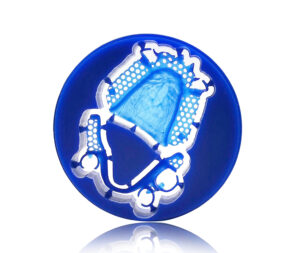

Wax
Indications
Coping/Full Crown
Three-Unit Bridge
Inlay/Onlay
Veneers
Screw-Retained Crown
Custom Abutment
Thimble Bar
Partial Denture Frameworks
Super structures Over Bars
Full Dentures
Full Dentures without Teeth
Bite Splint
Tool list
| Zirconia milling burs | 2.0 / 1.5 / 1.0 / 0.6 |
| PMMA milling burs | 2.0 / 1.0 / 0.6 |
| Glass ceramics milling burs | 2.0 / 1.0 / 0.6 |
| Metal milling burs | 3.0 / 2.0 / 2.2 / 1.5 / 2R0.2 / 1.5R0.1 |
Fixture
Round fixture
Glass ceramics fixture
Abutment fixture

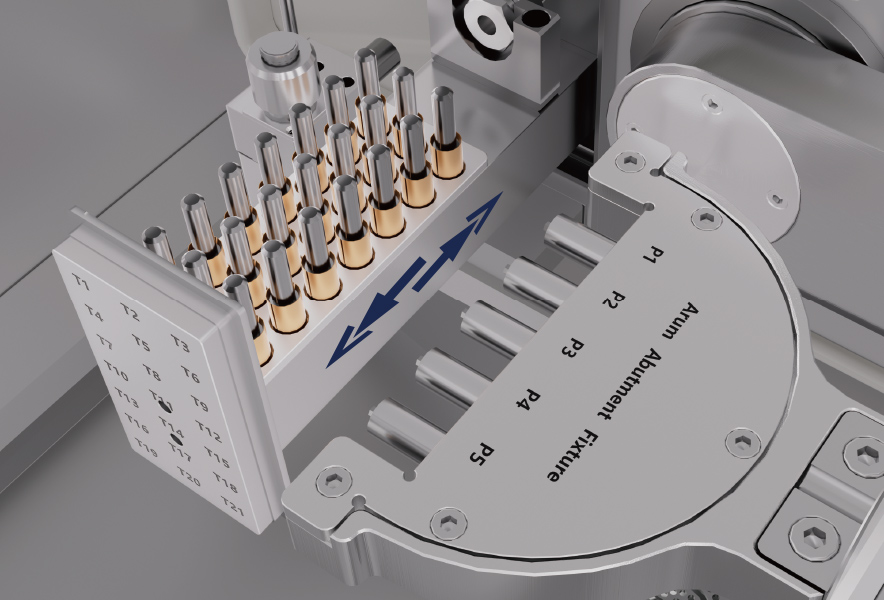

Arum abutment fixture

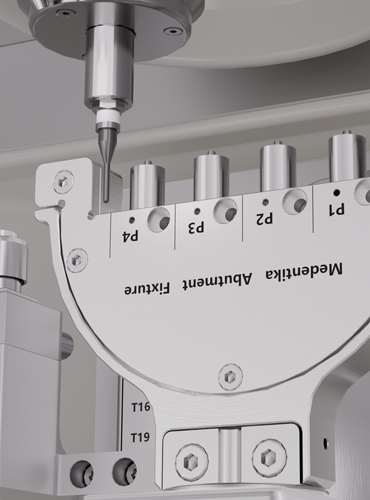

Medentika abutment fixture
Specification
| Model | T52DW-5 Axis dental milling machine |
| Function | |
| Machine size | 731X680X1764mm |
| weight | 250kG |
| Tool magazine | 21 |
| Input voltage | 220V |
| Max. spindle power | 2.5kW |
| Max. machine power | 3.5kW |
| A/B milling angle | A-axis ±360° B-axis +30° -90° |
| Mliing mode | Dry/wet milling |
| MAx. spindle speed | 3,000-60,000rpm |
| Processing stroke method | XYZ:182/150/120 |
| Spindle cooling method | Water cooling |
| Millable material | Glass ceramics / abutment/ zirconia/ titanium block/ PMMA/ PEEK/ Wax |
| Average milling time |
Glass ceramics 15-30min Abutmemt 8-13min Zirconia 7-15min implant bridge 90-180min PMMA 8-12min Wax 6-8min |
