5 axis turn-mill dental milling machine
T52CX

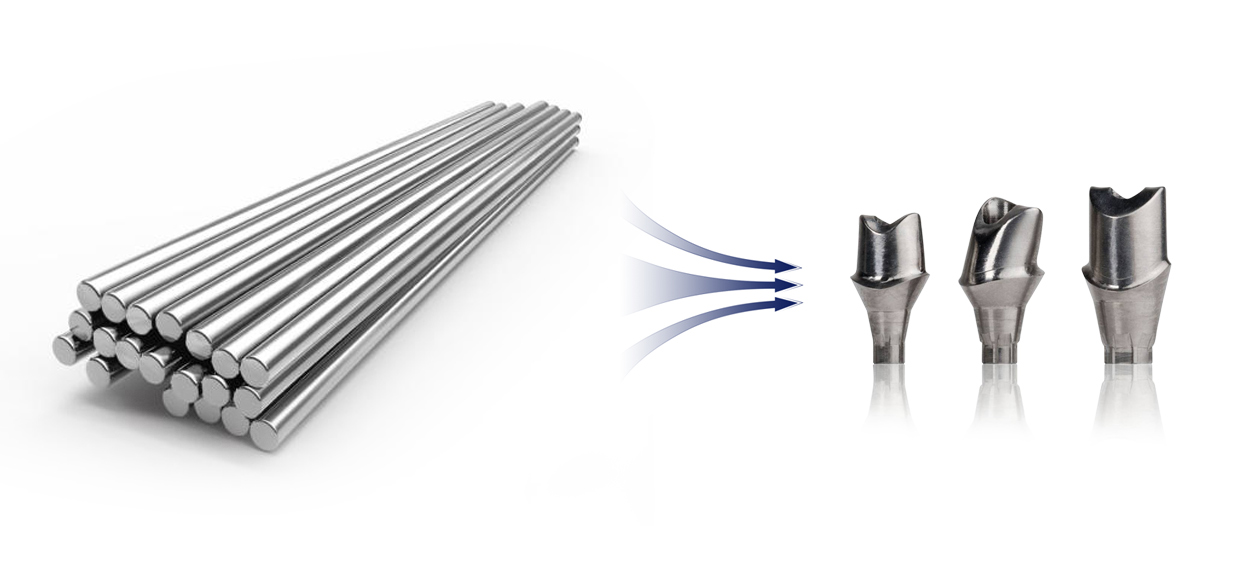

In One Step
From Titanium Blank to Abutment
Seamlessly machine abutments directly from titanium blanks without the extra process of converting titanium rods into titanium cylinders, improving efficiency and reducing production time.
Save materials
We can process titanium rods up to 10 mm in diameter, saving significant material. Our simple, stable design allows us to create a variety of abutment shapes to meet diverse customer needs.
High-speed operation
A high-speed rotating sharp blade can instantly cut through material fibers, resulting in a perfectly smooth, mirror-like finish with clear, sharp contours.
Precision in Every Motion
Powered by a high-performance servo motor system, the machine ensures precise positioning, smooth operation, and stable milling accuracy for complex dental restorations.

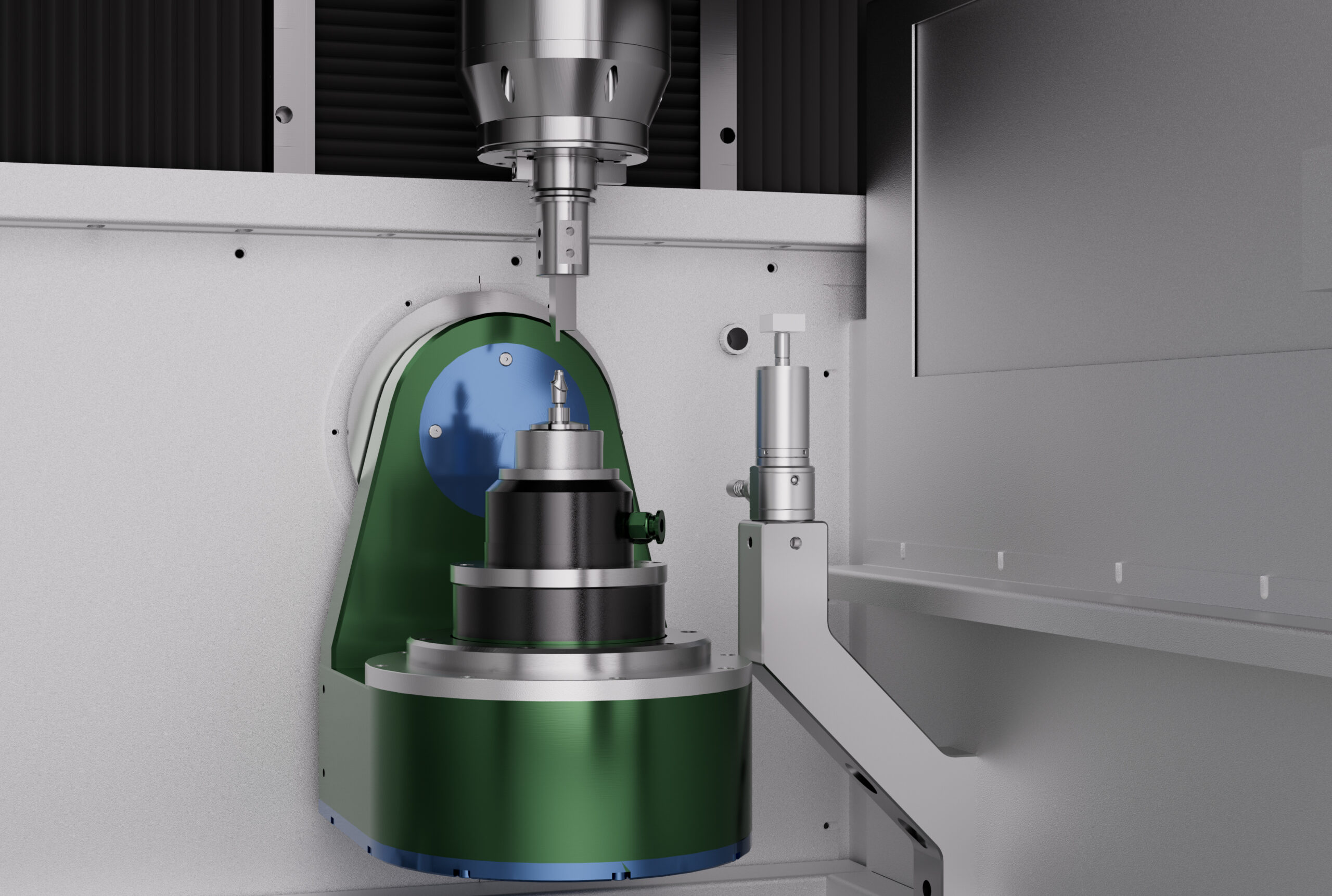

90° Vertical Milling Structure
Featuring a 90° vertical milling design, the machine delivers greater cutting stability, improved chip removal efficiency, and enhanced machining accuracy for superior dental restoration results.

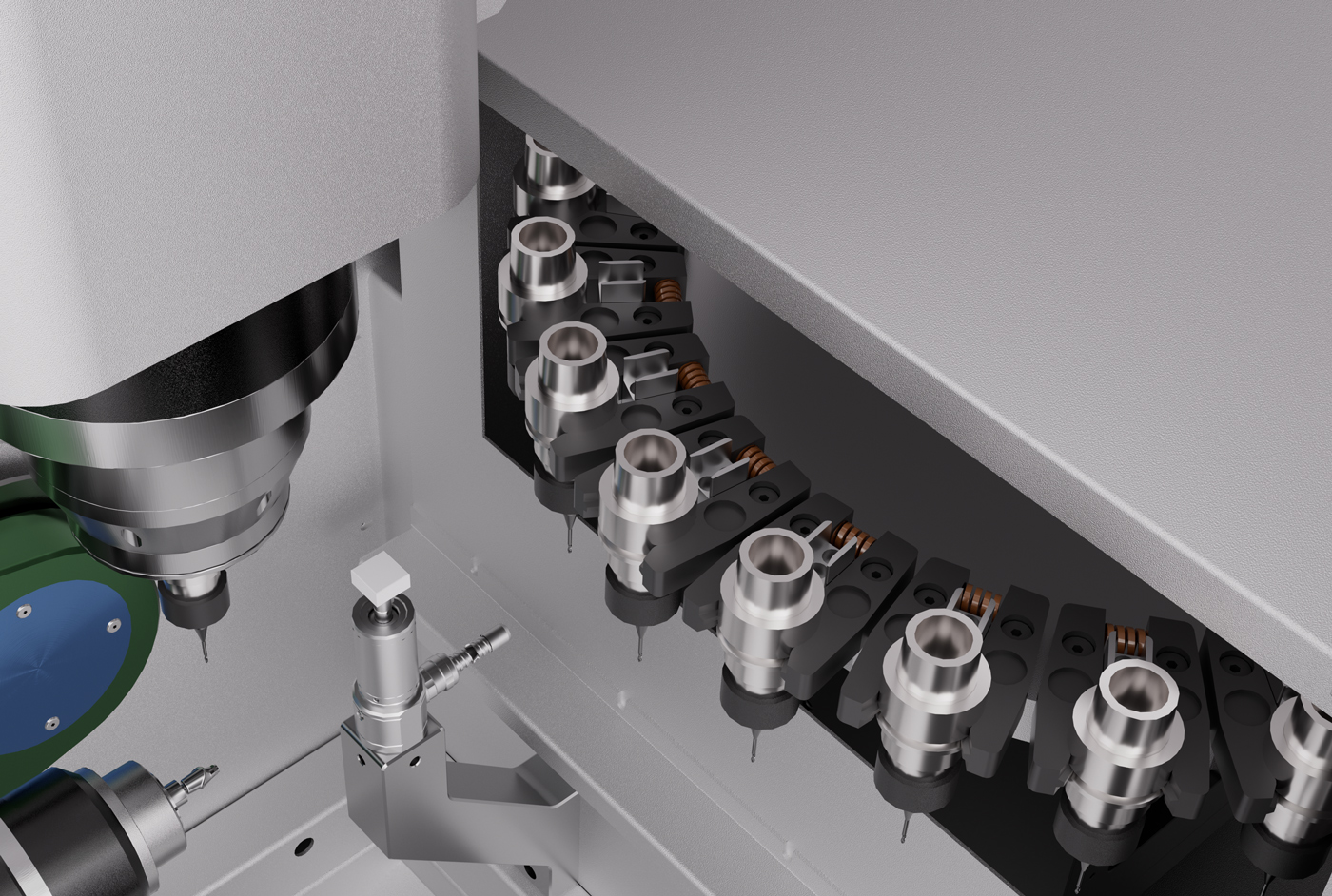

Automatic Tool Changer
Equipped with an automatic tool changing system, the machine seamlessly switches tools during machining, improving efficiency, reducing manual intervention, and ensuring continuous, precise production.
6KW
Spindle power
Equipped with a powerful 6kW spindle, the machine enables one-step abutment machining with exceptional precision and surface finish, eliminating the need for manual polishing.

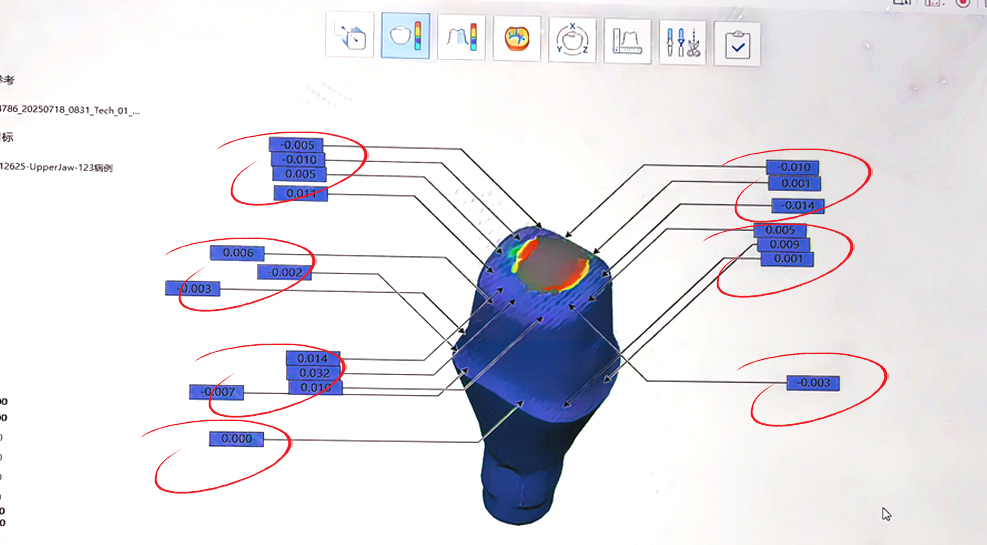

Ultra-High Precision
Delivering exceptional machining accuracy of up to ±0.01 mm, the machine ensures precise fitting, outstanding consistency, and reliable long-term performance for complex dental restorations.
Specification
| Model | T52CX-5 axis turn-mill dental milling machine |
| Function | |
| Machine size |
1278X1570X1757mm(Without foot cups & without feeder) 2134X1570X1757mm(Without foot cups & with feeder) |
| weight | 1500kG |
| Tool magazine | 16 |
| Input voltage | 380V |
| Max. spindle power | 6kW |
| Max. machine power | 16kW |
| Milling angle | C-axis ±360° B axis ±90° |
| Mliing mode | Oil milling |
| MAx. spindle speed | 3,000rpm |
| Spindle cooling method | Oil cooling |
| Millable material | Titanium rod |
| Average milling time | Abutment 15-20min |
